Machine name

Type

Features

Specification

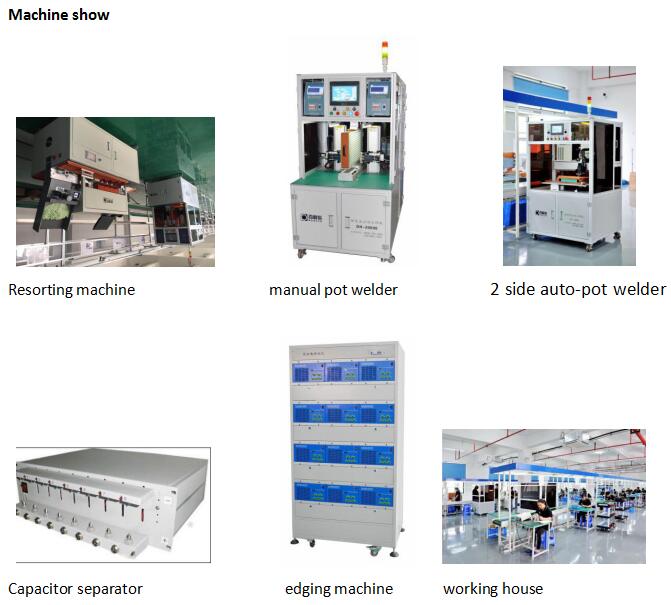

Resorting machine

FX-11

Automatic , match the battery pack according inner resistance and voltage capacity . standard industrial control PC machine , inspection data store and output with excel form , intelligent one stop setting , analysis sample automatic for optimization parameter generation

220V@50Hz,±10%，power ＜300W, weight 260kgs ,5.7’LCD+PC synchronous display , 10resorting +1 inject channel, setting freely .  R-range 80Ω±0.5%，resolution ratio 0.01Ω.V-range  0-8v±0.015%, resolution ratio 0.01mv。Speed -3600pcs/h.

Manual pot welder

DH8000A

 welding voltage fixed,pulse width modulation,two current monitoring comparison,self-diagnosis of failure .  for samples made and specimen testing.

380V3phase±10% @50/60Hz, 8000A max short current , control frequency 4KHz,DSP.8models setting , 1.0-20.0s welding , adjustable , precision 0.1ms . 400pcs/h , 35kgs weight.

2 side auto-pot welder

DH20000

Support breakpoint startup and auto-manual pattern conversion, fake welding alarm , any point program and array resorting , 99 units max, welding pin replace alarm tp remind , self-installed real time current inspection .

220V,380V3phase±10%，@50Hz,  ＜2000w , 6axis servo motor drive, 400kgs weight, size 1700*9001500 mm, Z -250mm, Y-540mm, motor speed 1000mm/s max. 0.5s/pot , 4500-4800pcs/h, 400 core load max, 99unit documentary storage ,  operation-embedded system+man-machine screen DSP. kind of drive --step forward+linear guide

Capacitor separator

DH8510

Complex testing the battery core

5V3A, 8channel capacitor separator , box cabinet

Charging and discharging machine (edging machine )

SQL001

MYSQL data system for excel output , 32data bits’ ARM main-control chip, USB interlink for data scanner, protection battery for edging test.

0-100V power voltage ,0-20A charging and discharging  current , customized.  ±1mV precision . (80V10Acharging,20A discharging)
